T35 low-bed car trailer

Auwärter PKW-Anhänger T35

Key facts

Convincing advantages.

  • Modular extendable construction system
  • Can be used extremely flexibly even in the base version
  • Rigid, lightweight construction with hot-dip galvanized V drawbar
  • Can be extended 3 – 4 m by hand with integrated cable roller for the lighting cable
  • Length pre-selection locking pins for various extension lengths
  • EPD coating (sand blasted, cathodic immersion priming, coating in RAL colors)

The all-round car trailer with telescopic extension – a flexible, high quality entry level for your logistics fleet.

The T35 is an extremely versatile telescopic drawbar trailer for cars and pickup trucks. The combination of compact, lightweight construction and high load capacity makes it a flexible all-round solution with variable loading possibilities. Whether as a high (T35O) or low-load (T35) design, the modular construction system with numerous additional functions and equipment such as S stakes or liner supports allow it to be adapted to your transport needs. Thanks to its maneuverability and simple handling, the T35 is particularly convincing for short notice and quick reaction wall transport.

Gallery

Technical data

Alongside its low overall weight and the comparatively high load capacity, the T35 car and pickup truck telescopic trailer adapts flexibly to your transport needs.

approx. 750 mm

Load height (above the wheels)

185 R 14 C

Tires

1.250 mm

Width in low-bed

approx. 460 mm

Loading height low-bed (loaded)

approx. 5,900 mm

Length overall standard

approx. 2,500 kg

Payload standard

approx. 2,050 mm

Clear platform width

approx. 4,150 mm

Clear platform length

3,500 kg

Gross weight

Accessories

Extension of bed and tele-drawbar

  • Clear platform length approx. 5,150 mm, giving V drawbar extension approx. 4,000 mm
  • Clear platform width approx. 2,250 mm.

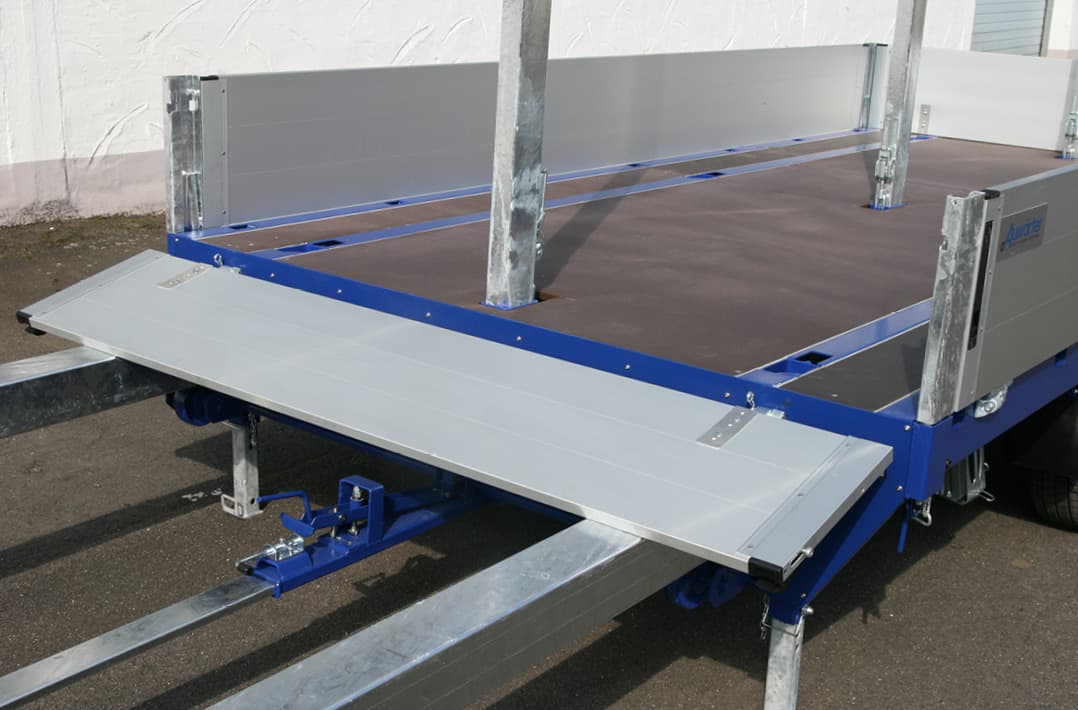

Drop sides

  • Drop sides up 400 mm high, drop sides down in low bed, out of aluminum hollow sections in each case, anodized, retractable and removable.

XPU35 – car swap body

  • the revolutionary car swap body for our T35 car trailer with all of the tried and tested features from the truck sector
  • for the T35 in lengths of both 5,150 and 4,150 mm

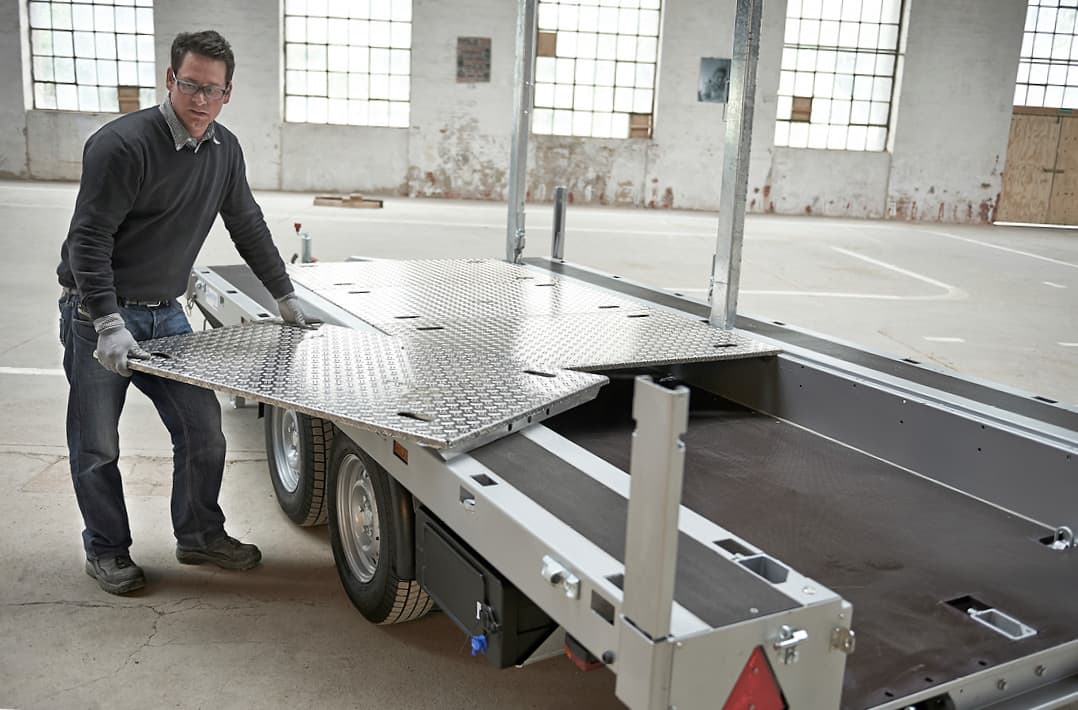

Floor panels for a completely level platform

  • 5 rigid floor panels in lightweight construction out of corrugated aluminum, lockable, weight per panel approx. 15 kg

X stakes (transport stanchions)

  • Hot-dip galvanized rectangular tube stanchion, wedge shaped for optimal load securing of wall elements, with eccentric closure and lashing bracket at the top. Height approx. 2,700 mm, can be inserted centrally and on the outside, also fit all other Auwärter trailer models

Liner supports

  • Cross members with lashing bars and stanchion bars 60x60 mm, lockable, hot-dip galvanized

Low-bed drop sides

  • Front and rear drop sides for low bed out of aluminum hollow sections, anodized

Drawbar clamp

  • Hot-dip galvanized for optimal load securing

Loading ramps

  • With parking supports at the rear secured with pins

S stakes

  • QuRo 60x60 mm secured with pins, height approx. 1,200 mm – 2,000 mm

Inlay shelf T 35 Screen printing plate

  • Shelf made of waterproof phenolic resin coated plywood boards 18 mm thick, top side anti-slip; secured by spring bolt
