T35O flatbed car trailer

Auwärter PKW-Anhänger T35O
+

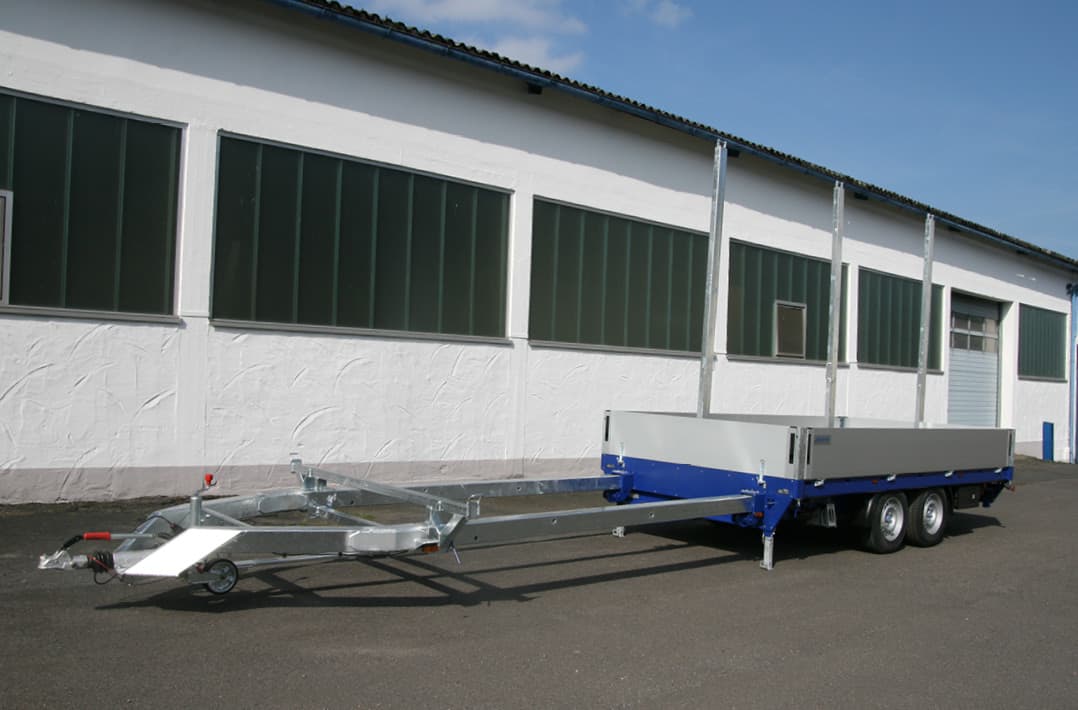

Telescopic extension

Drawbar can be pulled out by hand, to implement load lengths of up to 12 m (depending on equipment).

+

Load securing

using specially developed X stake pockets and 2x1 load securing rings on the side in the outer frame.

+

Adjustable drawbar clamp Adjustable drawbar clamp

for telescopic extension, locking or clamping, applicable for load height above the wheels.

+

Rollers

maintenance-free rollers for the V drawbar.

+

Load securing

using specially developed X stake pockets and 2x1 load securing rings on the side in the outer frame.

Key facts

Convincing advantages.

  • Extendable construction system
  • Can be used extremely flexibly even in the base version
  • Rigid, lightweight construction with hot-dip galvanized V drawbar
  • Can be extended 3 – 4 m by hand with integrated cable roller for the lighting cable
  • Length pre-selection locking pins for various extension lengths
  • EPD coating (sand blasted, cathodic immersion priming, coating in RAL colors)

A flexible telescopic trailer with which you win one thing above all: time.

The T35O, with a payload of 2.5 t, is one of the strongest car trailers in timber house construction transport. Easy load handling and optimally tailored to all transport requirements, it complements the logistics fleet of our customers. Thanks to the combination of compact lightweight construction, the associated low tare weight and the high load capacity, the T35O convinces with its versatile use and loading possibilities. Its telescopic drawbar provides an above average load volume for a car trailer. Depending on the goods being transported or the requirements, additional features for load securing such as drop sides or the drawbar clamp can be added in a modular fashion. Your decisive advantage: you remain flexible and can react even faster straight away.

Gallery

Teleskop Anhänger
Teleskop Anhänger
Teleskop Anhänger
Teleskop Anhänger
Teleskop Anhänger
Teleskop Anhänger
Teleskop Anhänger

Technical data

With its low tare weight and the comparatively high load capacity, the T35O car telescopic trailer adapts flexibly to your needs in timber construction.

185 R 14 C

Tires

ca. 5.900 mm

Length overall standard

approx. 2,500 kg

Payload standard

approx. 2,050 mm

Clear platform width

approx. 4,150 mm

Clear platform length

3,500 kg

Gross weight

Accessories

Extension of bed and tele-drawbar

  • Clear platform length approx. 5,150 mm, giving V drawbar extension approx. 4,000 mm
  • Clear platform width approx. 2,250 mm.

X stake (transport stanchion)

Hot-dip galvanized rectangular tube stanchion, wedge shaped for optimal load securing of wall elements, with eccentric closure and lashing bracket at the top. Height approx. 2,700 mm, can be inserted centrally and on the outside, also fit all other Auwärter trailer models.

Cross member

Cross members with lashing bars and stanchion bars 60x60.

Drop sides

Drop sides 400 mm high in hollow-section aluminum, anodized.

S stakes

QuRo 60x60 mm secured with pins, height approx. 1,200 mm – 2,000 mm.

Drawbar clamp

Hot-dip galvanized for optimal load securing.
